ThirdEye HD

$6000.00
ThirdeyeHD
Brand: MZK DENTAL PRODUCTS
Category: SPECIALTY PRODUCTS
Qty:

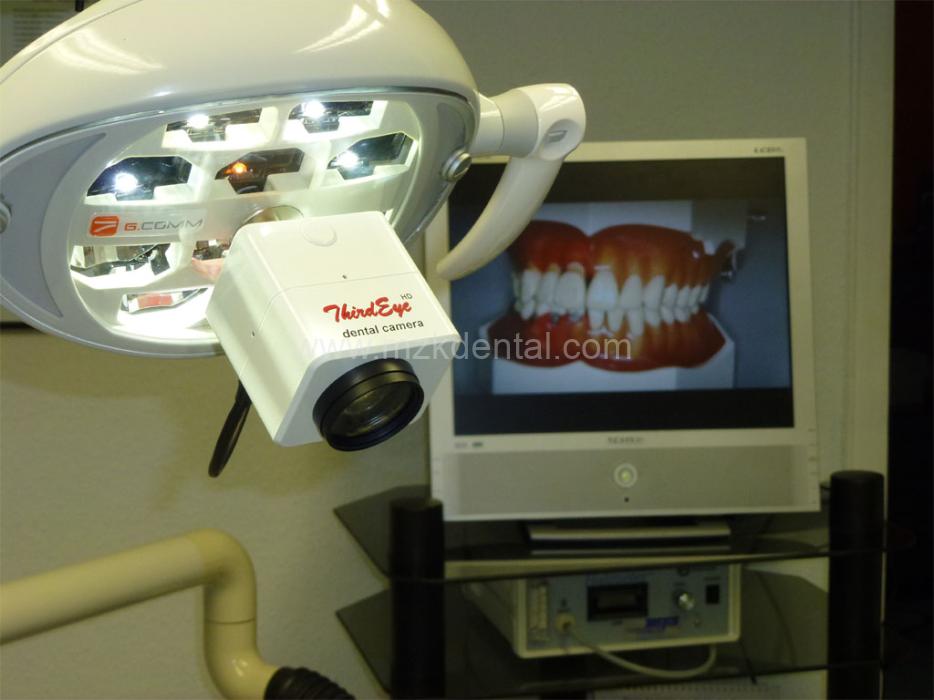

There will be no need to HOLD this camera in your hand(s)!ThirdEye-HD offers auto focus, a 10fold optical zoom lens and zoom remote control.ThirdEye-HD shoots videos during your treatment and it can assist your work like a surgical microscope* does !ThirEye-HD is the perfect camera for full-HD live transmissions on large video screens and for high resolution videodocumentation of all your surgeries and treatments.









·         full-hd video resolution

(1.920x1080i pixels)

·         auto focus

·         10x optical zoom

·         zoom remote control (cable)

·         easy installation

·         mountable on most dental lights.

(weighs 230 grams !)







There will be no need to take this camera in your hand(s)!

ThirdEye-HD offers auto focus, a 10fold optical zoom lens and zoom remote control.

ThirdEye-HD shoots videos during your treatment and it can assist your work like a surgical microscope* does !

ThirEye-HD is the perfect camera for full-hd live transmissions on large video screens  and for high resolution video

documentation of all your surgeries and treatments.


* up to 30fold magnification







Technical Data

Camera

housing

aluminium, white,  stove-enamelled

dimensions

64 x 52 x 73,5 mm

weight

230 g

image sensor

1/3" Sony CMOS 2 Megapixel Sensor

image format

16:9

minimum illumination

12 Lux at F1.8 - 2.1

resolution

1.920 x 1.080 pixel (Full-HD)

video signal

HD analogue 1080/50i (or60i) Y/Pb/Pr analog component signal

signal to noise ratio

> 50 dB

white balance

AWB, automatic,  manual by push button, Tungsten and daylight

range of white balance

3.200oK - 10.000oK (without filter)

electronic iris

automatic

operating temperature

0o - + 45o C

humidity

- 85%

power supply

12 Volt 12 DC

power consumption

3,8 Watts

Zoom-Lens

focal lengths (zoom)

10x   f:5.1mm - f:51mm

focussing

autofocus or manual focusing

range of focus

with close-up lens 30cm - 80cm

without close-up lens 80cm - infinity (on big surgical lights)

depth-of-field

3 - 6cm depending on working distance and intensity of light

Accessories

power supply

110/220 Volt AC 12 Volt DC

camera cable

component cable (3x75 Ω)

·         6pol plug on camera side

·         3x RCA plugs + DC socket

color of cable: black, length of cable : 6m  (optional up to 20m)

camera mount

miniature camera stand with lockable ball joint (stainless steel)

close-up lenses

close-up lenses depending on preference of dentist

NL1  working distance  from 50cm to 80cm
NL2  working distance  from 40cm to 60cm



silicone glue

Hylosil®, transparent, high-heat resistant (-180o C)



"
